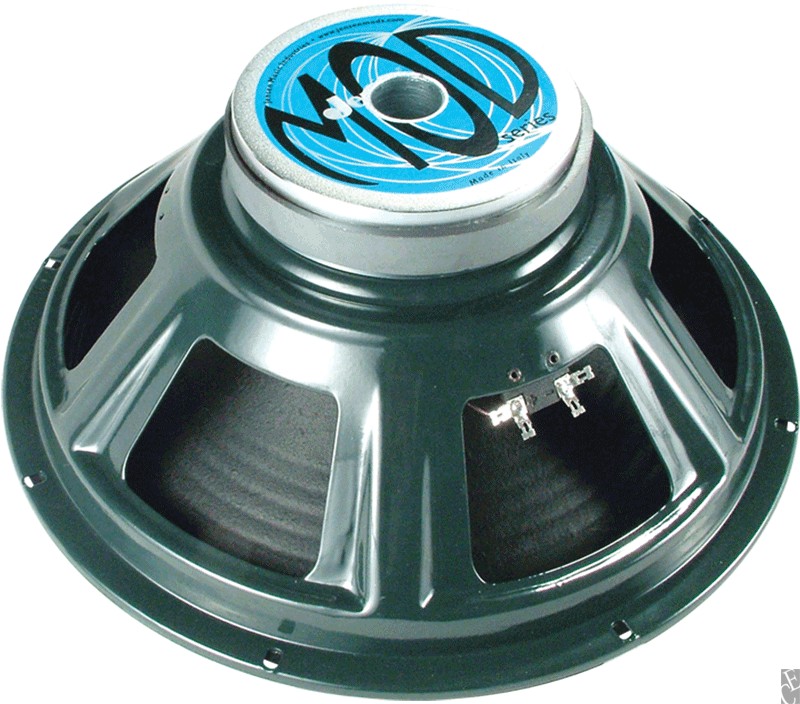

JENSEN MOD15-200 15", 4 OHM, 200W SPEAKER

MOD 15-200

TIGHT LOW-END WITH CLEAR BRIGHT HIGHS. IT RESPONDS TO OVERDRIVE DISTORTION WITH A RHYTHM CRUNCH AND FUZZ LEAD VOICE.

General Characteristics
Nominal Overall Diameter  385 mm  15 in
Nominal Voice Coil Diameter  65 mm  2.5 in
Magnet Weight  1450 g  50 oz
Overall Weight  11.90 lbs
Flux Density  1.16 T

Thiele-Small Parameters
Voice Coil DC Resistance  RE  6.30 Ω
Resonance Frequency  ƒS  44.3 Hz
Mechanical Q Factor  QMS  22.10
Electrical Q Factor  QES  0.44
Total Q Factor  QTS  0.43
Mechanical Moving Mass  MMS  54.4 g
Mechanical Compliance  CMS  238 µm/N
Force Factor  BxL  14.66 Wb/m
Equivalent Acoustic Volume  VAS  190.0 lt.
Maximum Linear Displacement  XMAX  2.0 mm
Reference Efficiency  nO  3.58 %
Diaphragm Area  SD  755.0 cm2
Losses Electrical Resistance  RES  313.6 Ω
Voice Coil Inductance @ 1kHz  LE  1.10 mH

Constructive Characteristics
Magnet  Ferrite
Voice Coil Winding  Copper
Voice Coil Former  Kapton
Cone  Paper
Surround  Treated Cloth
Dust Dome  Solid Paper
Basket  Pressed Sheet Steel

Electrical Characteristics
Nominal Impedance  4 OHM
Rated Power  200 W
Musical Power  400 W
Sensitivity@1W,1m  98.6 dB

$ 117.85

Quantity :
