EMINENCE BETA 15A 15" 8 OHM OUR PICK FOR B15

BETA 15A

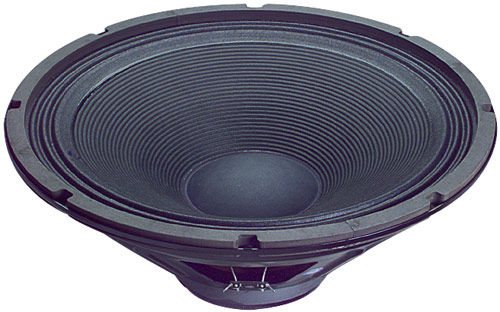

EMINENCE BETA  15A 15" 8 OHM 350 WATT  SPEAKER. ONE OF OUR TOP SUGGESTIONS TO REPLACE THE CTS SQUARE MAGNET SPAKERS IN YOUR AMPEG B15, B25 CABS AND MORE.  IT MAY SEEM LIKE OVERKILL ON THE WATTAGE BUT THESE MODERN SPEAKERS ARE VERY EFFICIENT AND MAKE A GREAT MATCH FOR THESE AMPS. DON'T SEE THE SPEAKER YOU WANT HERE? GIVE US A CALL. WE HAVE ACCESS TO A LARGE ARRAY OF SPEAKER TYPES AND BRANDS.

SPECIFICATION
Nominal Basket Diameter  15", 381mm
Nominal Impedance*  8 ohms
Power Rating
Watts 200W
Music Program  400W
Resonance 41Hz
Usable Frequency Range  46Hz-3.5kHz
Sensitivity*** 97
Magnet Weight  25 oz.
Gap Height  0.25", 6.35mm
Voice Coil Diameter 1.5", 38.1mm

THIELE & SMALL PARAMETERS
Resonant Frequency (fs)  41Hz
DC Resistance (Re)  5.88
Coil Inductance (Le)  0.84mH
Mechanical Q (Qms)  7.23
Electromagnetic Q (Qes)  1.53
Total Q (Qts)  1.26
Compliance Equivalent Volume (Vas)  260.0 liters / 9.2 cu.ft.
Peak Diaphragm Displacement Volume (Vd)  325cc
Mechanical Compliance of Suspension (Cms)  0.25mm/N
BL Product (BL)  7.7 T-M
Diaphram Mass inc. Airload (Mms)  59 grams
Efficiency Bandwidth Product (EBP)  27
Maximum Linear Excursion (Xmax)  3.8mm
Surface Area of Cone (Sd)  856.3 cm2
Maximum Mechanical Limit (Xlim)  8.4mm

MOUNTING INFORMATION
Recommended Enclosure
Sealed 71-85 liters/2.5-3 cu.ft.
Vented 106-177 liters/3.75-6.25 cu.ft.
Overall Diameter  15.15", 384.8mm
Baffle Hole Diameter  13.77", 349.6mm
Front Sealing Gasket  Fitted as standard
Rear Sealing Gasket  Fitted as standard
Mounting Holes Diameter  0.25", 6.4mm
Mounting Holes B.C. D.  14.56", 369.9mm
Depth 5.83", 148mm
Net Weight  6.7 lbs., 3 kg
Shipping Weight  8.8 lbs., 4 kg

MATERIALS OF CONSTRUCTION
Coil Construction  Copper voice coil
Coil Former Polyimide former
Magnet Composition  Ferrite magnet
Core Details  Vented and extended core
Basket Materials  Pressed steel basket
Cone Composition  Paper Cone
Cone Edge Composition  Cloth cone edge
Dustcap Composition Solid composition paper dust cap

$ 79.99

Quantity :
