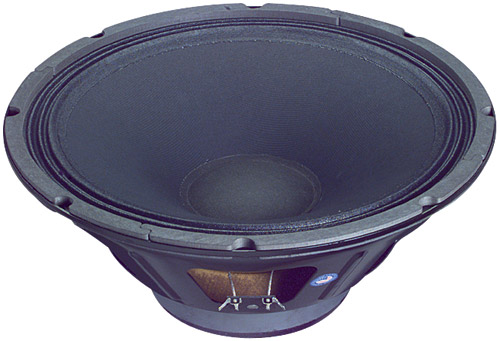

EMINENCE BETA 12A-2, 12" 8 OHM SB12

BETA 12A

EMINENCE BETA 12, 12" 8 OHM 250 WATT/MUSIC PROGRAM 500W SPEAKER. IT MAY SEEM LIKE OVERKILL ON THE WATTAGE BUT THESE MODERN SPEAKERS ARE MORE EFFICIENT AND HAVE PROVEN THEMSELVES TIME AND AGAIN AS AND EXCELLENT  MATCH WITH THESE AMPS.   DON'T SEE THE SPEAKER YOU WANT HERE? GIVE US A CALL. WE HAVE ACCESS TO A LARGE ARRAY OF SPEAKER TYPES AND BRANDS

SPECIFICATION
Nominal Basket Diameter  12", 304.8mm
Nominal Impedance*  8 ohms
Power Rating
Watts 250W
Music Program  500W
Resonance 47Hz
Usable Frequency Range  43Hz-3.8kHz
Sensitivity*** 98
Magnet Weight  38 oz.
Gap Height  0.312", 7.92mm
Voice Coil Diameter 2", 50.8mm

THIELE & SMALL PARAMETERS
Resonant Frequency (fs)  47Hz
DC Resistance (Re)  5.0
Coil Inductance (Le)  0.64mH
Mechanical Q (Qms)  6.00
Electromagnetic Q (Qes)  0.50
Total Q (Qts)  0.46
Compliance Equivalent Volume (Vas)  120.1 liters / 4.2 cu.ft.
Peak Diaphragm Displacement Volume (Vd)  237cc
Mechanical Compliance of Suspension (Cms)  0.29mm/N
BL Product (BL)  10.8 T-M
Diaphram Mass inc. Airload (Mms)  40 grams
Efficiency Bandwidth Product (EBP)  94
Maximum Linear Excursion (Xmax)  4.4mm
Surface Area of Cone (Sd)  538.9 cm2
Maximum Mechanical Limit (Xlim)  11mm

MOUNTING INFORMATION
Recommended Enclosure
Sealed 25.5-35.4 liters, 0.9-1.25 cu.ft.
Vented 36.8-139 liters/1.3-4.9 cu.ft.
Overall Diameter  12.03", 305.5mm
Baffle Hole Diameter  10.95", 278.1mm
Front Sealing Gasket  Fitted as standard
Rear Sealing Gasket  Fitted as standard
Mounting Holes Diameter  0.25", 6.4mm
Mounting Holes B.C. D.  11.59", 294.3mm
Depth 4.57", 116mm
Net Weight  7.5 lbs., 3.4 kg
Shipping Weight  9.7 lbs., 4.4 kg

MATERIALS OF CONSTRUCTION
Coil Construction  Copper voice coil
Coil Former Polyimide former
Magnet Composition  Ferrite magnet
Core Details  Vented and extended core
Basket Materials  Pressed steel basket
Cone Composition  Paper Cone
Cone Edge Composition  Cloth cone edge
Dustcap Composition Solid composition paper dust cap

$ 64.99

Quantity :
