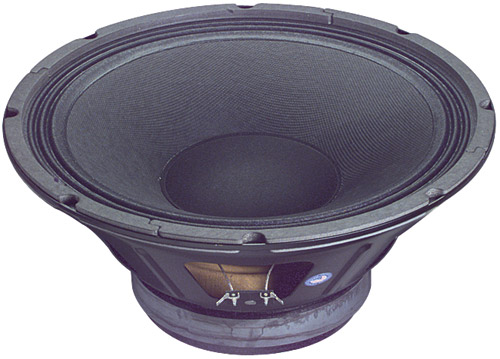

EMINENCE DELTA 12B 12" , 16 OHM SPEAKER

DELTA 12B

EMINENCE DELTA 12B, 12" , 16 OHM SPEAKER.
SPECIFICATION
Nominal Basket Diameter  12", 304.8mm
Nominal Impedance*  16 ohms
Power Rating
Watts 400W
Music Program  800W
Resonance 58Hz
Usable Frequency Range  65Hz-5kHz
Sensitivity*** 98.3
Magnet Weight  56 oz.
Gap Height  0.375", 9.53mm
Voice Coil Diameter 2.5", 63.5mm

THIELE & SMALL PARAMETERS
Resonant Frequency (fs)  58Hz
DC Resistance (Re)  11.4
Coil Inductance (Le)  0.77mH
Mechanical Q (Qms)  7.04
Electromagnetic Q (Qes)  0.52
Total Q (Qts)  0.48
Compliance Equivalent Volume (Vas)  87 liters / 3.1 cu.ft.
Peak Diaphragm Displacement Volume (Vd)  140cc
Mechanical Compliance of Suspension (Cms)  0.23mm/N
BL Product (BL)  16.0 T-M
Diaphram Mass inc. Airload (Mms)  32 grams
Efficiency Bandwidth Product (EBP)  112
Maximum Linear Excursion (Xmax)  2.7mm
Surface Area of Cone (Sd)  519.5 cm2
Maximum Mechanical Limit (Xlim)  9.0mm

MOUNTING INFORMATION
Recommended Enclosure
Sealed 15.6-18.4 liters/0.55-0.65 cu.ft.
Vented 34-68 liters/1.2-2.4 cu.ft.
Overall Diameter  12.03", 305.5mm
Baffle Hole Diameter  10.95", 278.1mm
Front Sealing Gasket  Fitted as standard
Rear Sealing Gasket  Fitted as standard
Mounting Holes Diameter  0.25", 6.4mm
Mounting Holes B.C. D.  11.59", 294.3mm
Depth 5.35", 136mm
Net Weight  11.4 lbs., 5.2 kg
Shipping Weight  13.5 lbs., 6.1 kg

MATERIALS OF CONSTRUCTION
Coil Construction  Copper voice coil
Coil Former Polyimide former
Magnet Composition  Ferrite magnet
Core Details  Vented core
Basket Materials  Pressed steel basket
Cone Composition  Paper Cone
Cone Edge Composition  Cloth cone edge
Dustcap Composition Solid composition felt dust cap

$ 82.50

Quantity :
