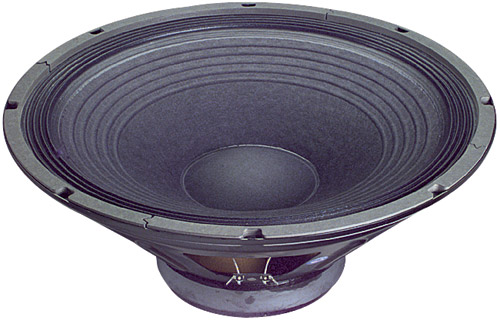

EMINENCE DELTA 15B 15" , 16 OHM SPEAKER

DELTA 15B

EMINENCE DELTA 15B, 15" , 16 OHM SPEAKER. RATED AT 400 WATTS PEAK.

SPECIFICATION
Nominal Basket Diameter  15", 381mm
Nominal Impedance*  16 ohms
Power Rating
Watts 400W
Music Program  800W
Resonance 45Hz
Usable Frequency Range  64Hz-4kHz
Sensitivity*** 100
Magnet Weight  56 oz.
Gap Height  0.375", 9.53mm
Voice Coil Diameter 2.5", 63.5mm

THIELE & SMALL PARAMETERS
Resonant Frequency (fs)  45Hz
DC Resistance (Re)  11.3
Coil Inductance (Le)  1.35mH
Mechanical Q (Qms)  6.54
Electromagnetic Q (Qes)  0.67
Total Q (Qts)  0.61
Compliance Equivalent Volume (Vas)  204 liters / 7.2 cu.ft.
Peak Diaphragm Displacement Volume (Vd)  137cc
Mechanical Compliance of Suspension (Cms)  0.19mm/N
BL Product (BL)  17.6 T-M
Diaphram Mass inc. Airload (Mms)  64 grams
Efficiency Bandwidth Product (EBP)  68
Maximum Linear Excursion (Xmax)  1.6mm
Surface Area of Cone (Sd)  856.3 cm2
Maximum Mechanical Limit (Xlim)  11.0mm

MOUNTING INFORMATION
Recommended Enclosure
Sealed 31-42.5 liters/1.09-1.5 cu.ft.
Vented 81.8-87.8 liters/2.89-3.1 cu.ft.
Overall Diameter  15.15", 384.8mm
Baffle Hole Diameter  13.77", 349.6mm
Front Sealing Gasket  Fitted as standard
Rear Sealing Gasket  Fitted as standard
Mounting Holes Diameter  0.25", 6.4mm
Mounting Holes B.C. D.  14.56", 369.9mm
Depth 6.05", 154mm
Net Weight  12.3 lbs., 5.6 kg
Shipping Weight  14.3 lbs., 6.5 kg

MATERIALS OF CONSTRUCTION
Coil Construction  Copper voice coil
Coil Former Polyimide former
Magnet Composition  Ferrite magnet
Core Details  Vented core
Basket Materials  Pressed steel basket
Cone Composition  Paper Cone
Cone Edge Composition  Cloth cone edge
Dustcap Composition Solid composition paper dust cap

$ 89.99

Quantity :
